5T ~ 80T Hot Top or Air Slip aluminum casting machine

FOB Reference Price:Get Latest Price
US $110,000-2,000,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Yuen-Sun
Model Number:
None
Application:
Aluminum Casting
Material:
Aluminum
Dimensions:
Customer Required
Supply Ability
Supply Ability:
120 Unit/Units per Year
Packaging & Delivery
Packaging Details
Shipping Container
Port
Foshan, Guangdong, China



8T ~ 30T Hot Top or Air Slip Aluminum Billet Casting Machine

Aluminum Billet Casting Machine

. The casting machine is 1 winch & 4 pcs of steel wire design. The moving distance is 7~12m. The capacity is tons (high water level).

. The speed is adjustable by the converter. It moves automatically or manually. There are some meters display the moving distance, speed and the temperature of melted aluminum and cooling water.

. It alarms when cast is ending. The starting head base stops when it up to the pre-set position.

. The tilting mechanism is controlled by hydraulic.

. The upper steel plate is 25mm and the lower one is 12mm thick.

. The mold is water-shade design and made of aluminum alloy. The material of all ceramic part is Zhongnai 1#.

. The starting head base is grid structure design, made of steel plates and self-alights. Starting heads are made of cast iron.

. The casting table and starting head base use 4 screws to bolt together to provide unitized installation and removal. Through another 4 screws the casting table is bolted to the tilting arms.

. The product quality satisfies the International Standard.

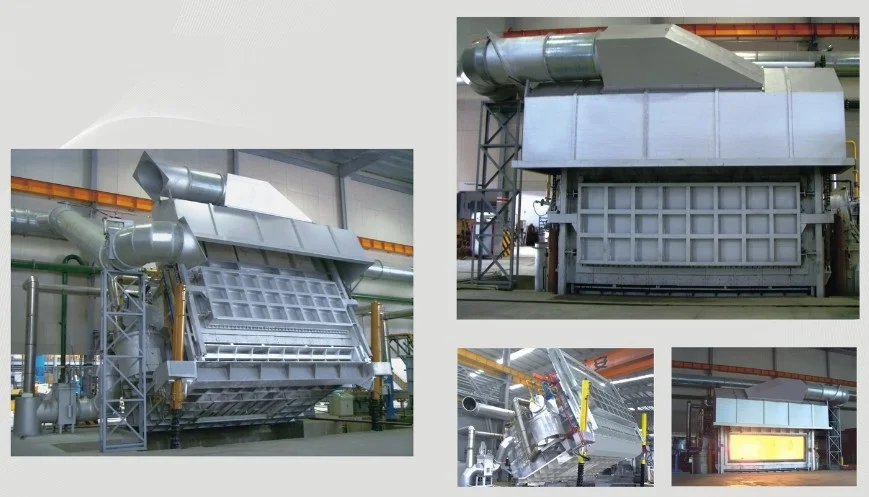

Aluminum Log Melting / Casting Line
Production LineLine CostProductivity/MonthRequired Space
10 tons LineUS$ 210,000700 tons20 m x 30 m
20 tons LineUS$ 260,0001,400 tons22 m x 30 m
25 tons LineUS$ 300,0001,700 tons24 m x 30 m



2015-06-14_094640





Factory View

Factory-06Factory-05Factory-02Factory-07

Company View

Factory-01-1Factory-01-2Factory-01-3Factory-004Factory-005





Our Services

Why Chose us?
1) A wide range of aluminum machinery
2) In-house development capability
3) Simple to complicate aluminum machinery
4) Quality products and services



Company Information

Yuen-Sun Equipment Co. (YSEC) was established in 1981 and is a Taiwanese-owned company with three manufacturing factories located in both Taiwan and mainland China. We are an ISO9000:2008 certified company. YSEC manufactures standard and custom-made aluminum extrusion machinery for producing products used in road transport, electronics, textiles, machinery, pneumatics, doors, windows, modular offices, kitchen furniture, automotives, heat transfer, architecture, hardware and many other fields where aluminum's versatile properties have made it the preferred choice over other materials
